CNC pneumatic perforation machine
CNC-controlled perforation for sheet up to 3 mm and 1,280 mm wide.
| Type | Perforation machine |
|---|---|
| Thickness capacity | Up to 3 mm |
| Sheet width | 1,280 mm |
| Use | Sheet perforation |
| Quantity | 1 |
Perforating & expanding
CNC and mechanical metal perforation
Metal perforation has been at the core of JASSCO's work since 1990. Today the plant runs CNC and mechanical perforation machines for sheet and coil up to 5 mm thick and 1,280 mm wide.
A dedicated perforation line-up
The catalogue documents four groups of perforation equipment: a CNC pneumatic perforation machine (up to 3 mm, 1,280 mm wide), four mechanical perforation machines (up to 5 mm, 1,280 mm wide), a CNC perforation machine (up to 3 mm, 1,000 mm wide) and seven mechanical perforation machines for lighter material (up to 1.5 mm, 500 mm wide).
Having both CNC and mechanical machines lets each job run on the equipment that suits its thickness, width and pattern.
Patterns and pitches

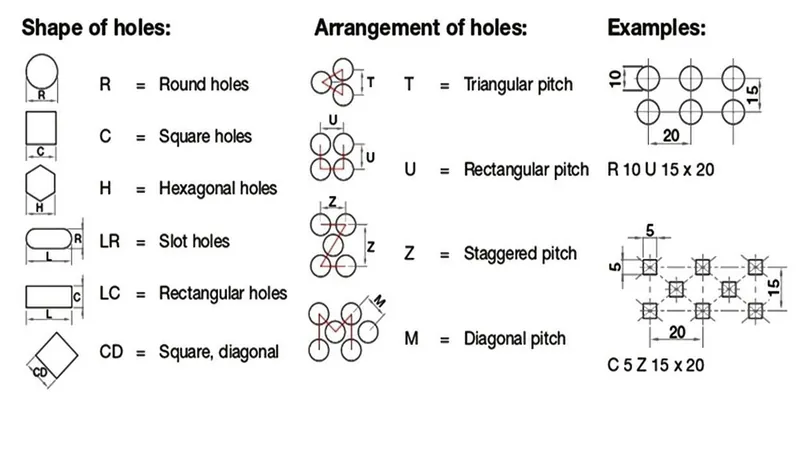

Round, square, slotted, hexagonal and decorative perforation patterns can be specified. Hole shapes can be arranged on a straight (rectangular) pitch, a staggered pitch or a triangular (60°) pitch. The pattern, hole size and pitch together determine the open area — the proportion of the sheet that is open — which drives airflow, visibility, weight and strength.
Specifying a perforated sheet
To quote accurately we need the material grade, thickness, sheet or coil size, hole shape and size, pitch and pitch arrangement, open area if it is a design requirement, and any plain (unperforated) margins. Confirm all pattern dimensions, margins and material requirements on the approved drawing.
Equipment for this process
08
Mechanical perforation machines (5 mm)
Four mechanical perforation machines for heavier perforated sheet up to 5 mm.
| Type | Perforation machine |
|---|---|
| Thickness capacity | Up to 5 mm |
| Sheet width | 1,280 mm |
| Use | Sheet perforation |
| Quantity | 4 |
09

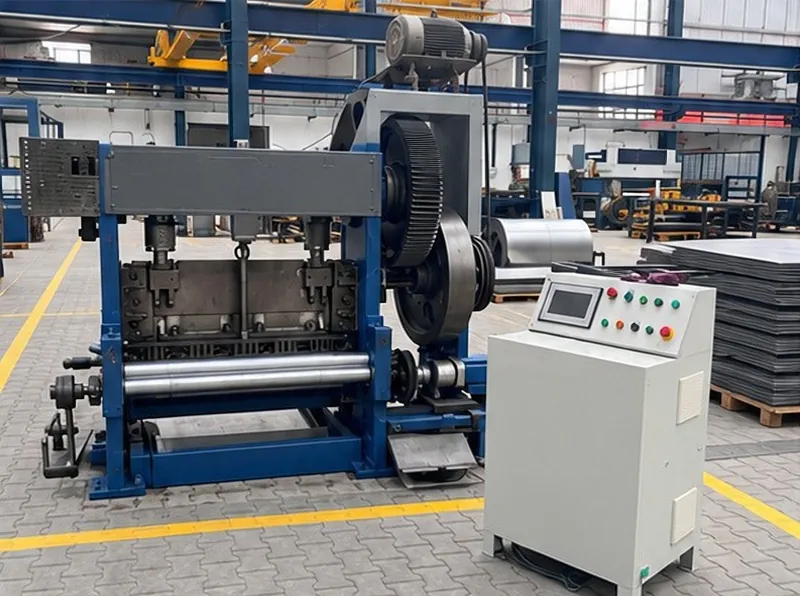

CNC perforation machine (1,000 mm)
CNC perforation for sheet up to 3 mm thickness and 1,000 mm width.
| Type | Perforation machine |
|---|---|
| Thickness capacity | Up to 3 mm |
| Sheet width | 1,000 mm |
| Use | Sheet perforation |
| Quantity | 1 |
10

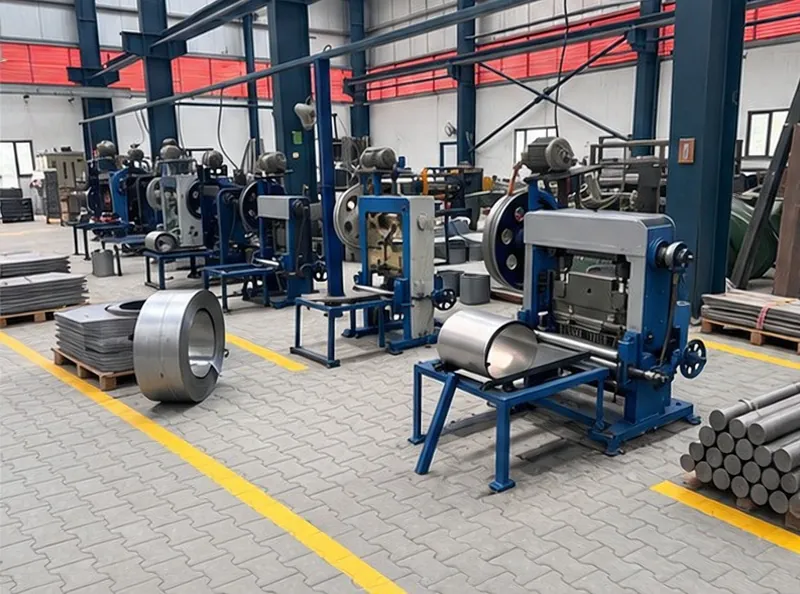

Mechanical perforation machines (1.5 mm)
Seven machines for light-gauge perforated strip and narrow sheet up to 500 mm wide.
| Type | Perforation machine |
|---|---|
| Thickness capacity | Up to 1.5 mm |
| Sheet width | 500 mm |
| Use | Sheet perforation |
| Quantity | 7 |
Suitable applications
- Ventilation grilles and equipment guards
- Screening, filtration supports and drainage
- Architectural facades and sunshades
- Acoustic panel facings
- Cable tray bases
Technical inputs we need from you
- Material grade and thickness
- Sheet size or coil width
- Hole shape, hole size and pitch
- Pitch arrangement (straight, staggered, triangular)
- Required open area, if specified
- Plain margins and quantity
Limits and confirmations
- Maximum width and thickness depend on the machine group (see table).
- Tooling availability for a specific hole size and pattern is confirmed at enquiry.
- Minimum hole size relative to sheet thickness is reviewed for each job.
How to enquire
Use the request-for-quotation form to upload drawings and specifications, or email sales.jasscosteel@gmail.com. Our team reviews feasibility and comes back with questions or a quotation.
Frequently asked questions
How thick can you perforate?
Mechanical perforation machines are listed up to 5 mm thickness on sheet up to 1,280 mm wide. CNC perforation is listed up to 3 mm.
Which perforation patterns are available?
Round, square, slotted, hexagonal and decorative patterns can be specified. Tooling for a specific size is confirmed at enquiry.
What is open area?
The percentage of a perforated sheet's surface that is open. It depends on hole shape, hole size and pitch, and affects airflow, light, weight and strength.
Do you supply perforated coils as well as sheets?
The catalogue lists perforated sheets and coils. Send the coil width, thickness and pattern so the team can confirm.
