Pneumatic seam welding machine
Seam and overlap welding of sheet up to 2 mm, for example on tubular parts.
| Type | Pneumatic transformer welding |
|---|---|
| Thickness capacity | Up to 2 mm |
| Use | Seam / overlap welding |
| Quantity | 1 |
Welding & joining
Pneumatic seam welding

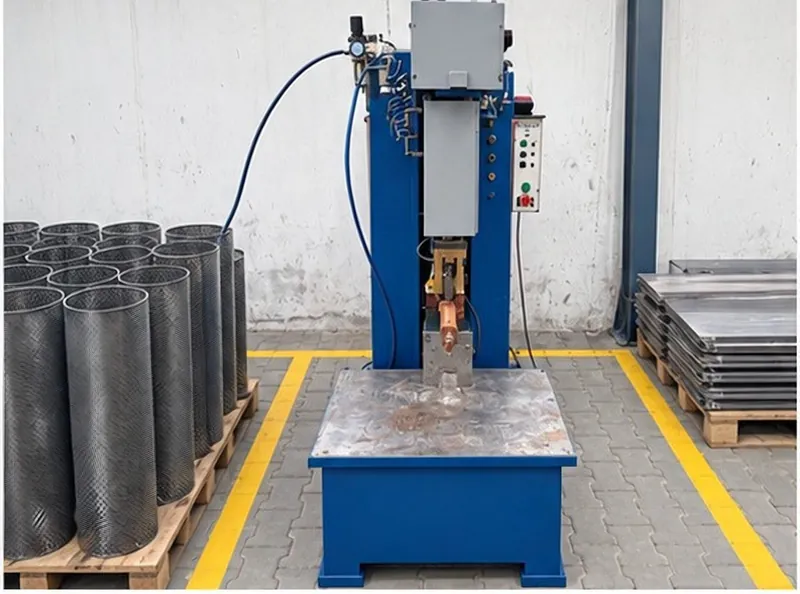

A pneumatic transformer welding machine for seam and overlap welds on sheet up to 2 mm thick.
How seam welding works
Seam welding is a resistance welding process. Electrical current is passed through overlapping sheets under pressure, producing a series of welds along the seam. It is suited to thin, overlapping sheet joints such as rolled tubes and formed sections.
Equipment for this process
Suitable applications
- Overlap seams on rolled and formed sheet
- Tubular sections
- Thin-gauge sheet assemblies
Technical inputs we need from you
- Drawing showing seam length and overlap
- Material grade and thickness
- Quantity
Limits and confirmations
- Rated up to 2 mm thickness.
- Suitability for coated or stainless material is confirmed at enquiry.
How to enquire
Use the request-for-quotation form to upload drawings and specifications, or email sales.jasscosteel@gmail.com. Our team reviews feasibility and comes back with questions or a quotation.
Frequently asked questions
What thickness can you seam weld?
The pneumatic seam welding machine is listed up to 2 mm thickness, for seam and overlap welding.
